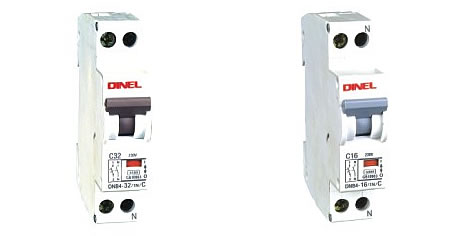

| DNB4-40 Mini circuit breaker |
 |
Application Range: |
| DNB4-40 mini circuit breaker is single-phase breaker of IPN structure, applicable to 50/60Hz lighting of maximum 230V rated voltage and used in socket circuit for protection against overload and short-circuits and for non-frequent energizing and de-energizing of powered equipment. Phase wires and neutral wires are connected or disconnected at the same time, improving safety in electricity utilization. With only 1/2 width of circuit breakers 2P of other types, it¨s smart, pleasing in appearance and more favorable in price-performance ratio. This product complies with standard GB10963 and IEC60898. |
|

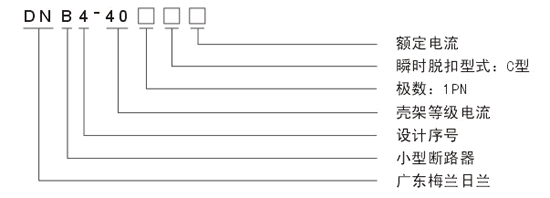

Model and the explanation: |
 |
|
Main specs and technical parameters: |
| 1.Rated current: 2、4、6、10、16、20、25、32、40A 2.Rated short-circuit breaking capacity: In＋20A 6KA In=25-40A 4.5KA 3.Mechanical and electrical life: closing operation and opening operation for 4000 times respectively, totaling up to 8000 times. |
 |
