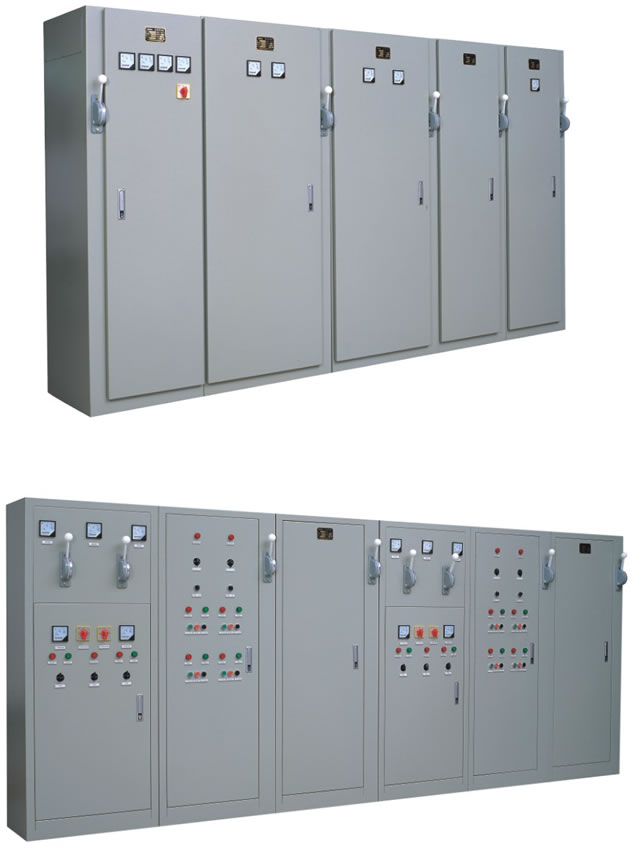

| DNX low-voltage power distribution case |
 |
Application Range: |
| The series power distribution case is used for control and lighting of the 380V and 0.52~75kW electromotor and can also be applicable to the site where the load performance of this power distribution case are met. This product meets the GB7251.1-1997 standard. |
|

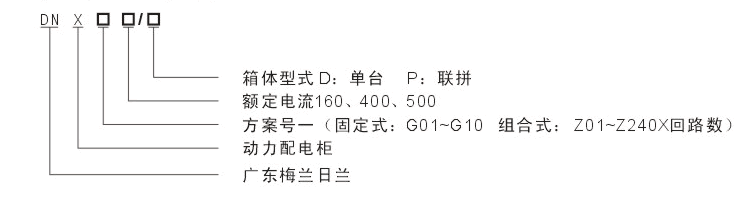

Model and the explanation: |
 |
|
Main specs and technical parameters: |
| The power distribution case is applicable under the following conditions: 1.The elevation height does not exceed 2000m 2.Environmental temperature: the ambient air temperature shall not exceed +40¡æ and shall be higher than -5¡æ, the 24-h average temperature is not higher than +35¡æ. 3.The relative humidity of the ambient air does not exceed 50% under the maximum temperature +40¡æ, the high relative humidity is allowed under the lower temperature, for example, it is 90% under the temperature below +20¡æ, it should be considered that sometimes the temperature change may result in the congealing dew. 4.The site where there is no intense shock and impact and the electric parts are not easy to erode. |
 |
